The Three-Tier Problem of CNG

2 Lessons + 1 Idea from 20 PoCs

Yui Matsumura / yuiseki
Geolonia, Inc.
CNG Japan 2026

The main message

CNG is not only a storage problem.

It is also a compute problem.

Cloud-native geospatial storage has enabled something important:

request-time geospatial computation

What I mean by “Three-Tier Problem”

There are three execution environments:

Cloud / Edge / Browser or App

And we must decide where to place:

Storage / Compute / Representation

This placement problem is the Three-Tier Problem of CNG.

The design space

There is no single correct placement.

The right design depends on storage size, transfer time, runtime constraints, update frequency and progress of technology.

How I got here

I built about 20 small PoCs around CNG data.

Not to benchmark everything.

Not to propose a complete architecture.

But to understand one question:

What becomes possible when

CNG data is treated as computable input?

Two lessons + one idea

Lesson 1: Computability

A tile can be a request-time computation result.

Lesson 2: Antigravity

Cloud-native geospatial data has both gravity and antigravity.

One idea: Symmetry

Cloud and Edge may share portable geospatial data products.

<Lesson_1>

Lesson 1: Computability

A vector tile is not only a pre-generated file.

A vector tile can be a function result.

Why vector tiles mattered

Starting from vector tile responses forced three constraints:

1. computation must be bounded by tile coordinates
2. output must be compact and renderable
3. the function must be fast enough to serve interactively

So the tile becomes a useful unit of geospatial computation.

Introduction to the Demo

https://yuiseki.dev

Demo 1: Dynamic vector tile on yuiseki.dev

https://yuiseki.dev/poc-cng-taroverture-openmaptiles/

</Lesson_1>

<Lesson_2>

Lesson 2: Antigravity

Data gravity says:

large data tends to stay in the cloud.

But CNG data can also have antigravity.

When data is:

• chunked
• indexed
• range-readable
• self-describing

useful subsets can escape into portable products.

Examples of Data Antigravity

You can extract from...

• PMTile
• STAC and COG
• GeoPackage
• GeoParquet

CLI tool for data antigravity

• https://github.com/yuiseki/cng-data-antigravity

data moving across tiers:

cloud-scale source → portable asset → edge-deployable service

The data can move outward from cloud-scale storage.

Antigravity is not magic

Ideally, the subset preserves native format and provenance.

But the core idea is simpler:

CNG data can be large enough to stay in the cloud,

yet addressable enough to escape the cloud.

Practical concerns remain:

• provenance
• licensing
• update strategy
• runtime-specific indexes

</Lesson_2>

From Antigravity to Symmetry

If data can move from Cloud to Edge,
then we can ask a harder question:

Can Cloud and Edge share the same portable geospatial data product?

This is the idea I call:

Cloud-Edge Symmetric Geospatial

Edge Native Geospatial

In the real world,

There are already geospatial data formats that can be handled entirely on smartphones.

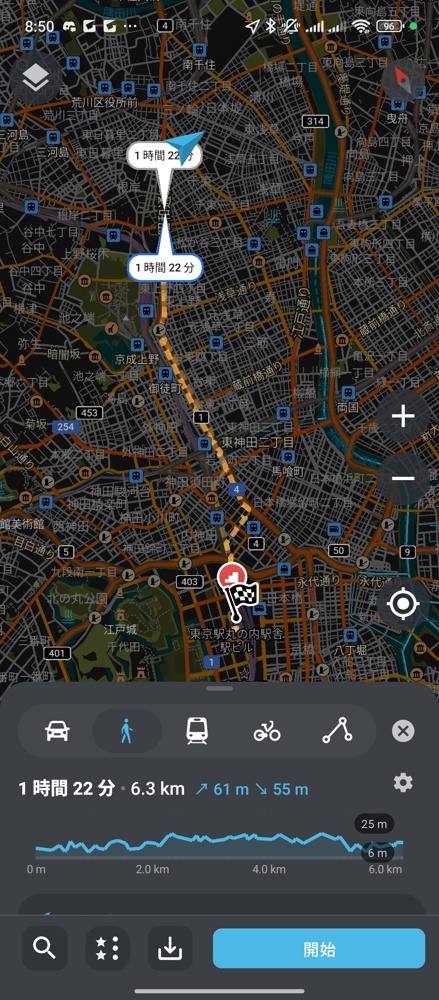

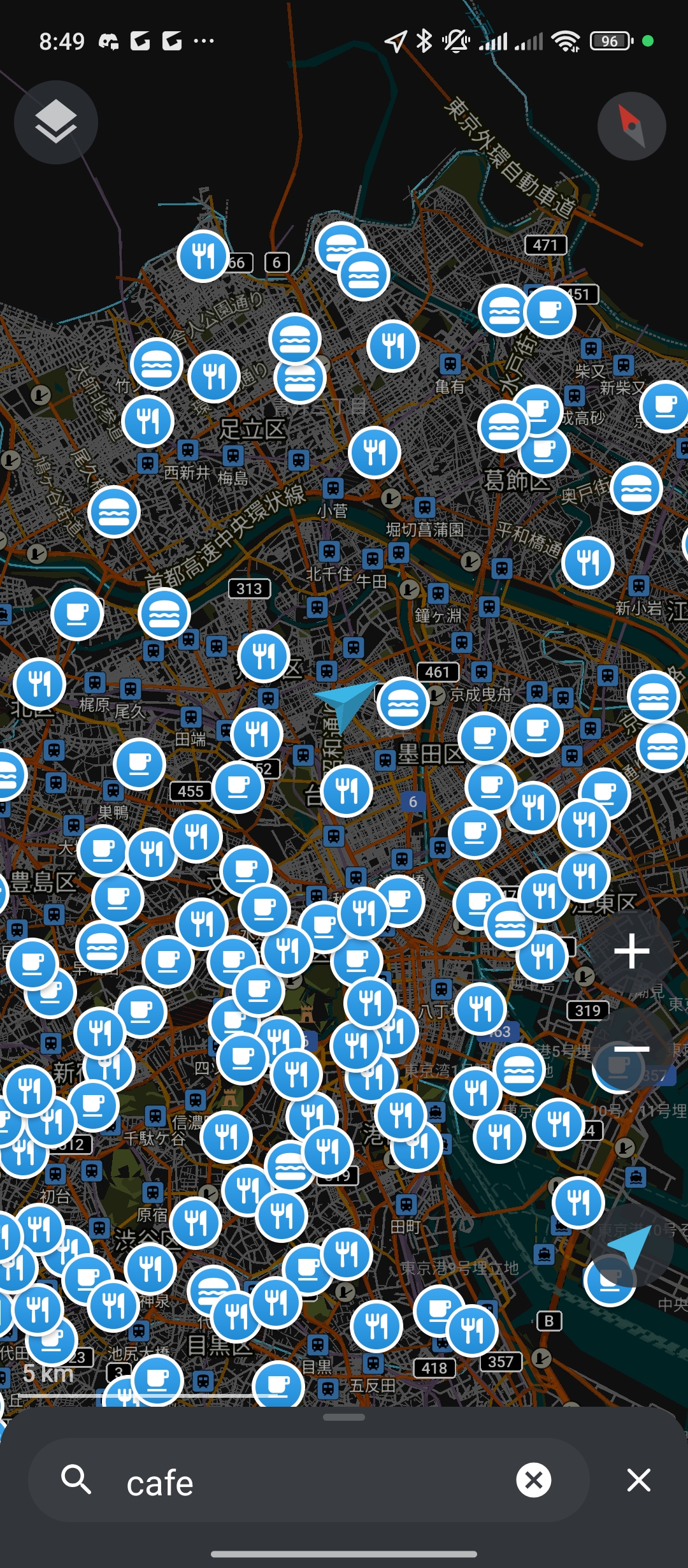

Example 1: OsmAnd

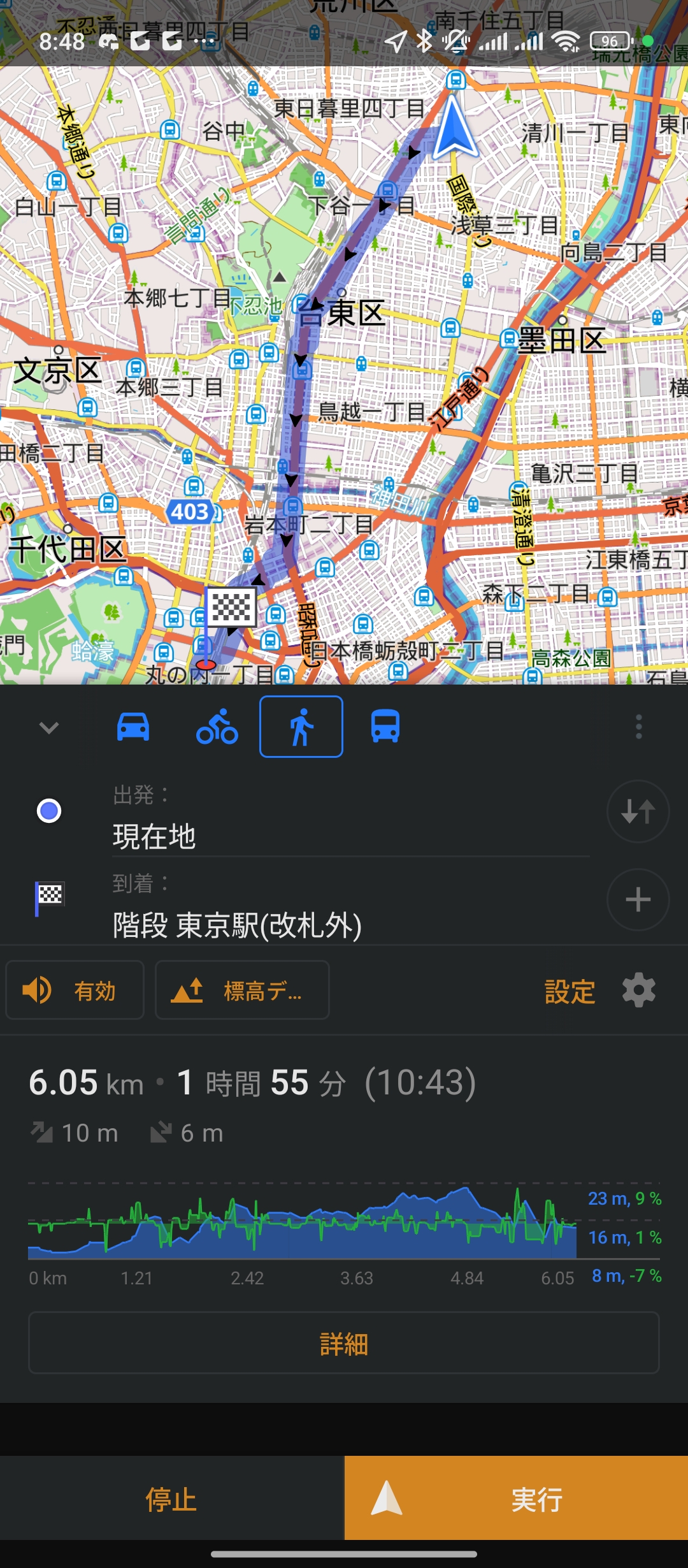

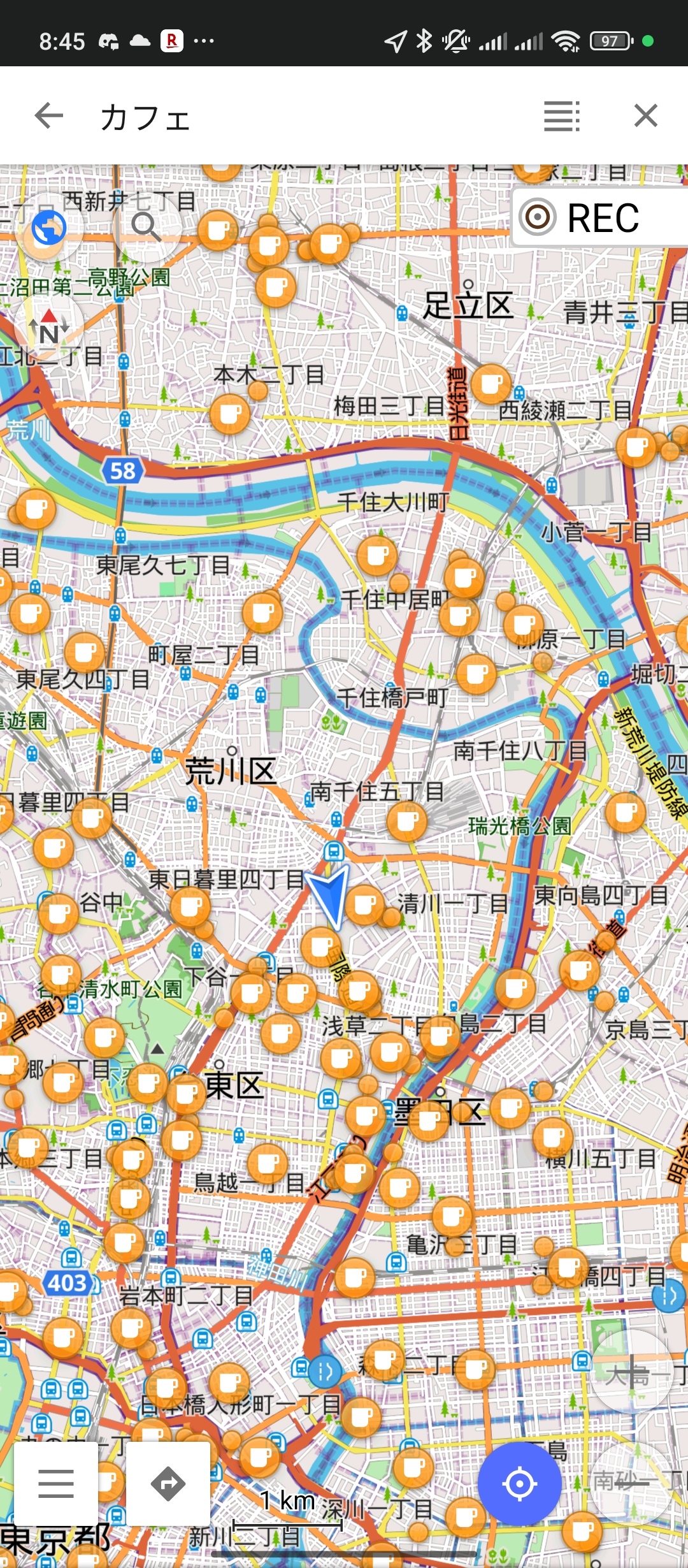

Example 2: Organic Maps

<One_Idea>

One idea: Cloud-Edge Symmetric Geospatial

This does not mean:

“everything runs everywhere.”

It means:

reduce rebuilds and reformatting between Cloud and Edge

by sharing a portable geospatial data product.

Symmetry across tiers

Demo 2.1: POI search on yuiseki.dev

https://yuiseki.dev/poc-cesg-poi-search/

There is no search engine anywhere

There are only files and functions

Demo 2.2: Route search on yuiseki.dev

https://yuiseki.dev/poc-cesg-route-search/

There is no routing engine anywhere

There are only files and functions

Now, I’d like to share a shocking fact with you

Please be careful of heart attacks

yuiseki.dev is a k3s cluster on 6 Raspberry Pis

The demo you just saw is running on this cluster.

You can own your cloud in your room

OK, Let's take a deep breath

Why this is still only an idea

Edge-native geospatial apps are already exists.

Examples include smartphone map apps with:

• regional files
• POI search
• offline routing
• runtime-optimized formats

But these formats evolved independently.

The hard part may not be technical.

It may be economic and institutional.

The third tier: Browser

Browser is not only a display surface.

It has its own storage and compute model:

• Service Worker
• Cache Storage
• OPFS
• Wasm

Example PoC:
https://github.com/yuiseki/poc-opfs-sw-tile

Today I focus mainly on Cloud → Edge,
but Browser is the third body in the same problem.

</One_Idea>

Final takeaway

The Three-Tier Problem of CNG

is the placement problem of:

Storage / Compute / Representation

across:

Cloud / Edge / Browser or App

2 Lessons + 1 Idea

2 Lessons

1. Computability
   tile = request-time computation result

2. Antigravity
   CNG data can escape from cloud-scale storage

1 Idea

3. Symmetry
   geospatial capabilities can move across Cloud / Edge / Browser or Apps

I look forward to working with all of you

To build the future of CNG.
